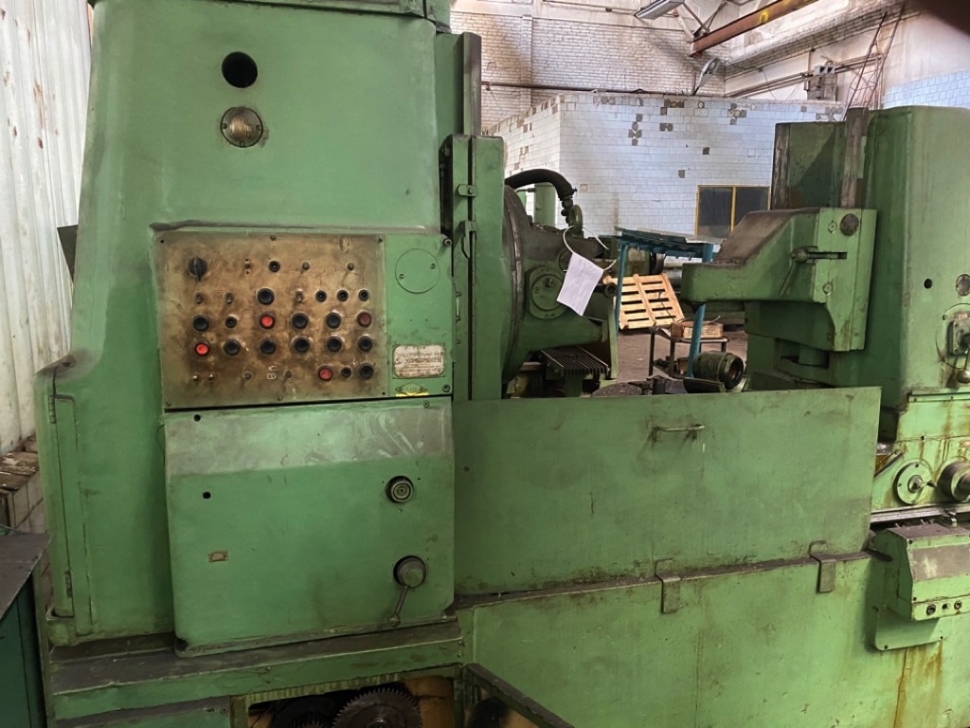

Vertical gear hobbing machine 53A80H

KOMSOMOLEC 53A80H 1979 Used Equipment Europe Ref: #WM-2669
Vertical gear hobbing machine 53A80H | WorldMach.com
1 / 5
Vertical gear hobbing machine 53A80H Thumbnail 1
Vertical gear hobbing machine 53A80H Thumbnail 2
Vertical gear hobbing machine 53A80H Thumbnail 3
Vertical gear hobbing machine 53A80H Thumbnail 4
Vertical gear hobbing machine 53A80H Thumbnail 5
Price / Listing Offer
Price on Request
Contact dealer for competitive price quotation
Send Direct Enquiry
Share Print Sheet
Manufacturer
KOMSOMOLEC
Year
1979
Operating Hours
N/A
Location
Europe
Manufacturer KOMSOMOLEC
Model 53A80H
Year of Manufacture 1979
Condition Used Machinery
Hours of Operation Not Specified
Serial Number Available on Request
Location Europe
Category Metal processing machines
Reference ID #WM-2669
Listing Published 10 August 2024
Max. wheel diameter: 800 mm
Max. module: 10
Min. module: 8
Table diameter: 630 mm
Max. angle of inclination of the teeth of the wheels:  +/- 45 degree
Distance between the axes of the table and cutter: 80-500 mm
Distance from the plane of the table to the axis of the cutter: 195-595 mm
Max. dimensions of the installed hob:
 -Length: 200 mm
 -Diameter: 200 mm
Max. vertical movement of the support: 400 mm
Bore taper of milling slide (Morse): 5
Maximum axial movement of the cutter: 100 mm
Rotation frequency of the milling spindle: 40-405 rpm
Feed:
 -Vertical: 0,75-7,5 mm/min
 -Radial: 0,22-2,25 mm/min
Power capacity of main motor: 12,5 kW
Dimensions: 2897x1810x2250 mm
Machinery weight: 10800 kg
