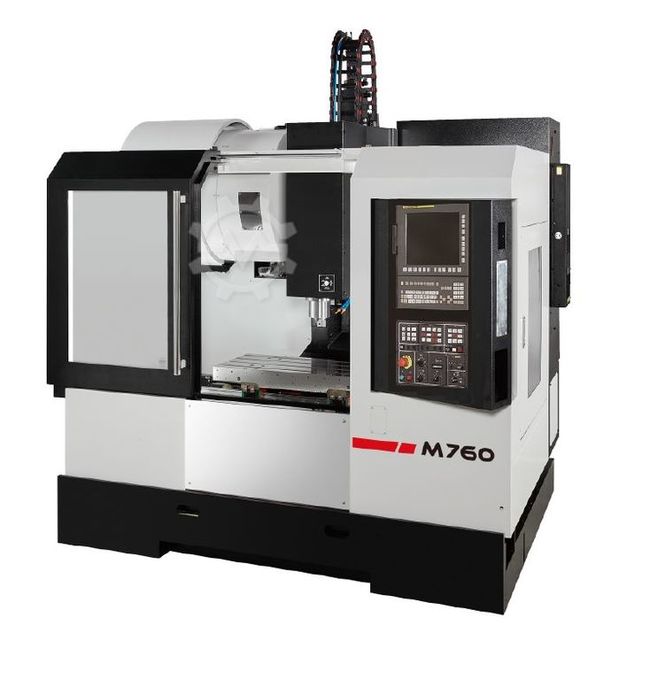

Optimum Maschinen Germany Microcut M760 Microcut CNC machining center

Machine is in the exhibition. M760 Premium CNC milling machine directly from the manufacturer.
M760 – The premium CNC milling machine with Fanuc 0IMF control is characterized by power, speed, precision and long life.

Heavy execution
High productivity
Linear guides for high rapid traverse speeds in all axes
24-fold magazine tool changer (double arm gripper)
High reliability
Castings made of quality Meehanite cast iron
Cross table precision ground with 4 T-slots
Heavily ribbed, torsion-free machine base
Precision-ground preloaded high-performance
Ball screws in all axes
High torque servo drives directly on the ball screws
in all 3 axes
Electronic handwheel
Chip conveyor
Cleaning gun
RJ45 plug connection, USB connection and power supply (230V)
Coolant system
Heat exchanger
Traverse path
X-axis automatic 760 mm
Y-axis automatic 440 mm
Z-axis automatic 460 mm
Vertical spindle
Nuce2
Spindle mount BT 40
Speed range 10 – 10000 min¯¹
Power of drive motor Continuous operation S1 7.5 kW
Tool changer
Type double arm gripper
Number of tool places 24 tools
Tool diameter max. 75 mm
Tool weight max. 7 kg
Time tool change tool to tool (T to T) 2 s
The advertisement was translated automatically and some translation errors may have occurred.

Price: € 489,500.00
