HELLER MC20AB Machining Center Universal

x-travel 800 mm
y-travel 800 mm
z-travel 1000 mm

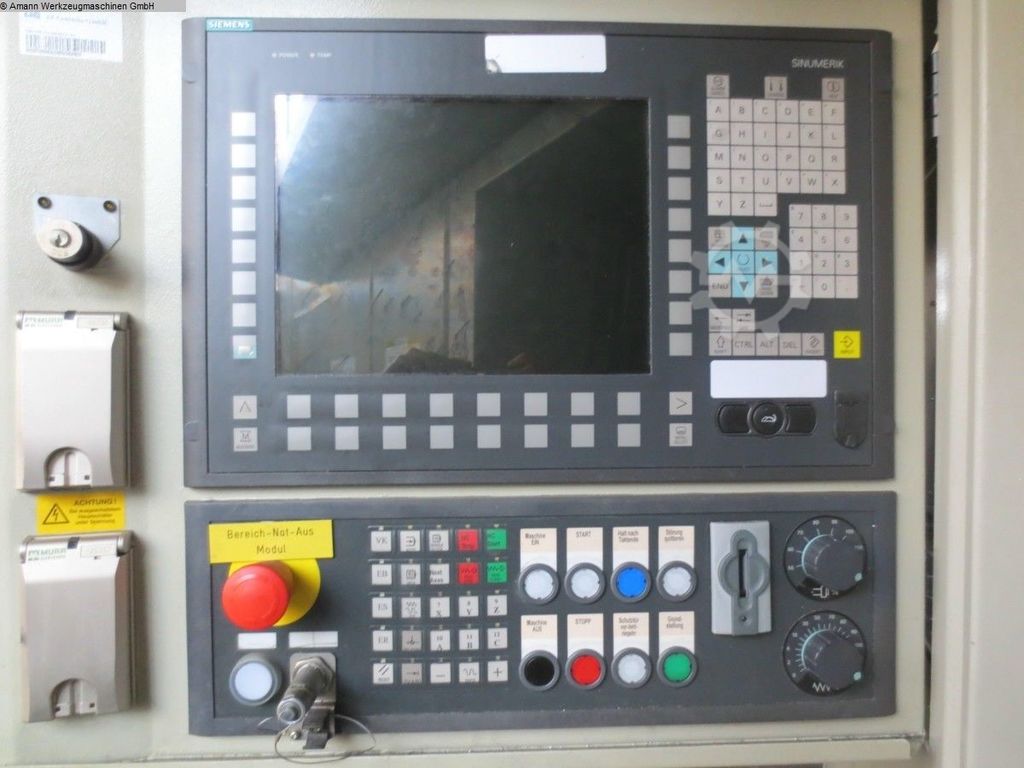

control SIN 840 D sl
feed X/Y/Z/-axis 1 – 60000 mm/min
rapid traverse X/Y/Z 60,00 m/min
acceleration X/Y/Z 8,00 m/s²
feed capacity X/Y/Z 10,00 kN
spindle turning speed – stepless 1 – 16000 U/min
power capacity at 100 % load 30,00 kW
feeding force at 40 % ED 34,00 KW
max. torque on the spindle 60 / 85
tool taper HSK63
B – axis 360 x 0,001 °
table-size 520 mm
table load 0,50 t
max. workpiece diameter 900 mm
A – axis -18 / +90 x 0,001 °
toolpiece magazine: chain magazine 88 Stück
tool diameter 72 mm
wotkpiece diameter with 2 vacant positions 150 mm
tool length – max. 600 mm
weight of tools max. 12,00 kg
Chip to chip time 3,00 sec.
total power requirement 30 kW
weight of the machine ca. 13 t
dimensions of the machine ca. 6,0 x 3,0 x 4,2 m

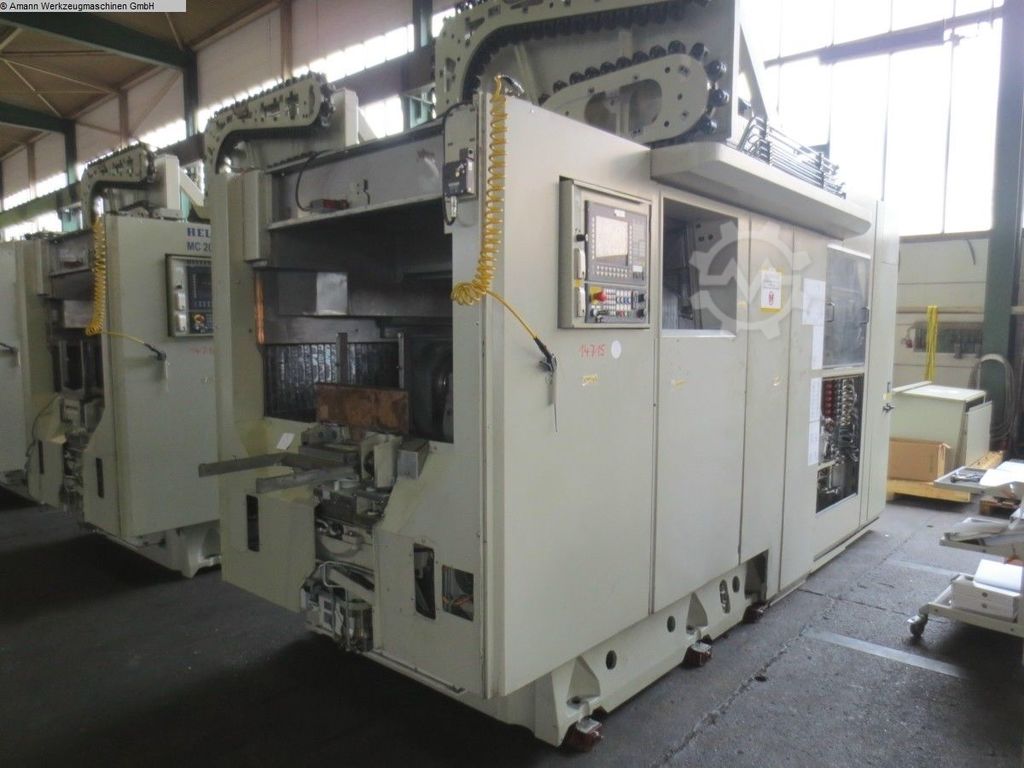

5 Axes machining center with SIEMENS SIN 840D sl. control

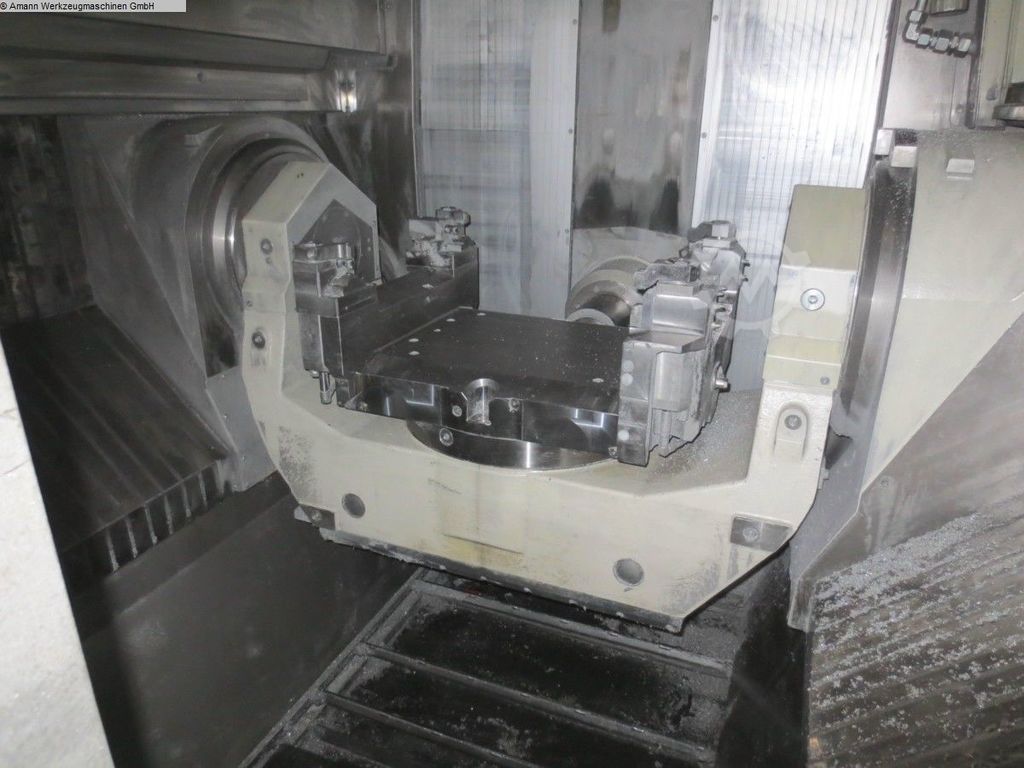

Z – Axes is constructed in a cross tape manner with 2 drives and carries
the two bearings for the A-Axis (bridge swings) which can be stopped
hydraulically by a brake disc.
In addition the bridge of the A-Axis has a B-Axis integrated which acts as
Bidwv9szfg
a round table.
Machine can be inspected under power.
