GLEASON PFAUTER - Genesis 130 H

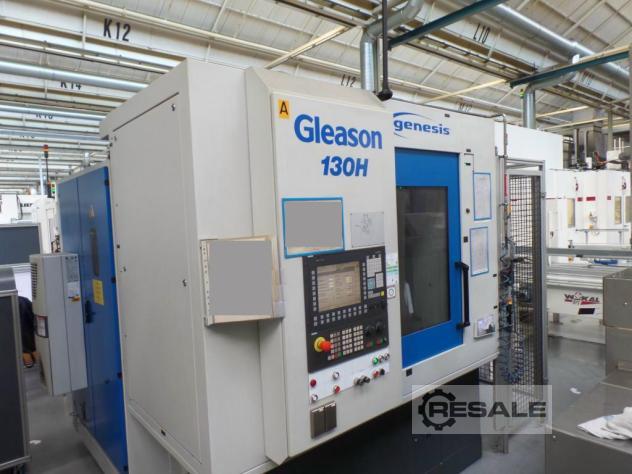

Gear Hobbing Machines GLEASON PFAUTER Genesis 130 H
used machine

TECHNICAL DATA SHEET
CNC hobbing machine

Make GLEASON PFAUTER
Type Genesis 130 H

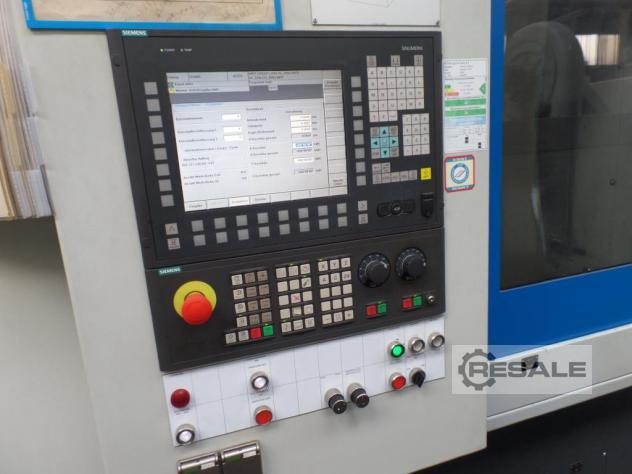

Control SIEMENS 840D
Year of construction 2006

Workspace
workpiece diameter 130 mm
radial travel (X-axis) 160 mm
tangential travel (Y-axis) 220 mm
axial travel (Z-axis) 350 mm
displacement counter holder (Z4 axis) 350 mm
Milling head swivel angle (A-axis) +/- 45 degrees

Workpiece table
Outer diameter 200 mm
Clamping diameter 150 mm
Bore 45 mm
table speed 1,000 1/min

Head
Drive power 11.5 kW
module 3 mm
milling cutter speed 4,000 1/min
head circle Ø of the cutter 100 mm
Max cutter length 317 mm
Max cutter length (toothed) 240 mm

Feeds and rapid traverses
Axis X 20 m/min
Axis Y 10 m/min
Axis Z 7 m/min

Dimensions, weight
Space requirement approx. 3.1 x 2.3 x 2.9 m
Machine weight approx. 9,500 kg

Electrical connection values
Total connected value 48 kVA
Operating voltage 400 V
Operating frequency 50 Hz
Control voltage 24 V DC
Cable F627320 cross-section 35 mm²
Fuse 125 A

Equipment
• Designed for dry machining
• Hydraulic power unit
• Magnetic belt conveyors
• Extraction system Fabr. REVEN
• Heat exchanger for hydraulic oil temperature control (without
cooling unit)
• Counter holder with lowering device and vertical adjustment
option
• Swivel ring loader with tapping device (without feed belt)
• Deburring device
