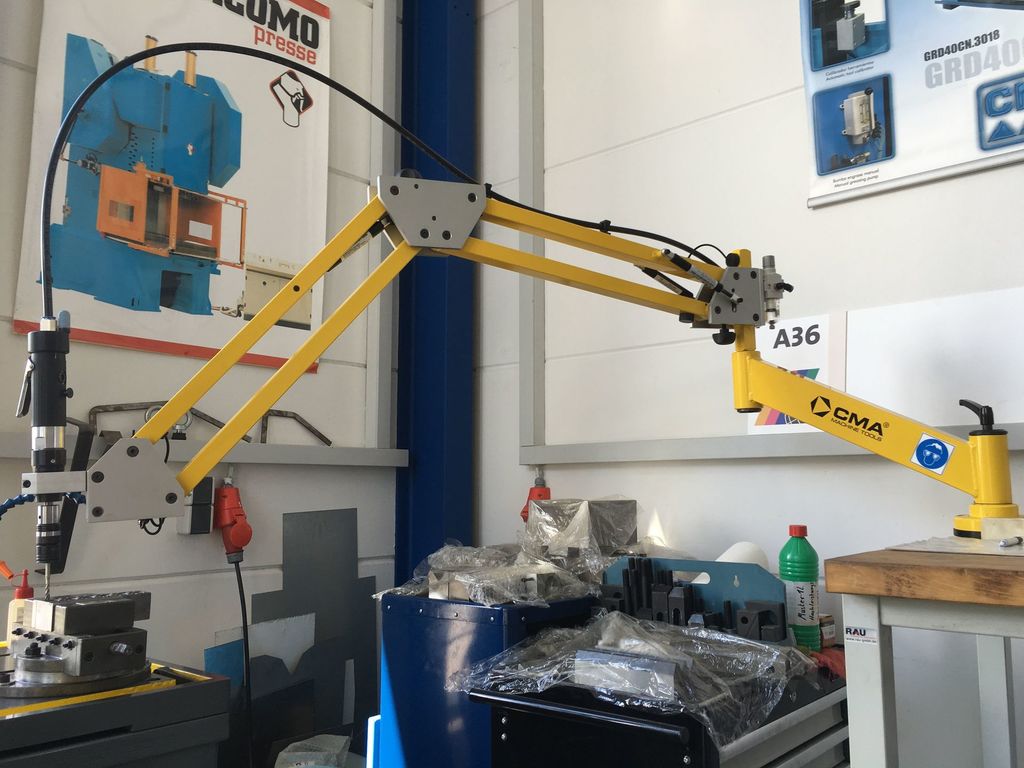

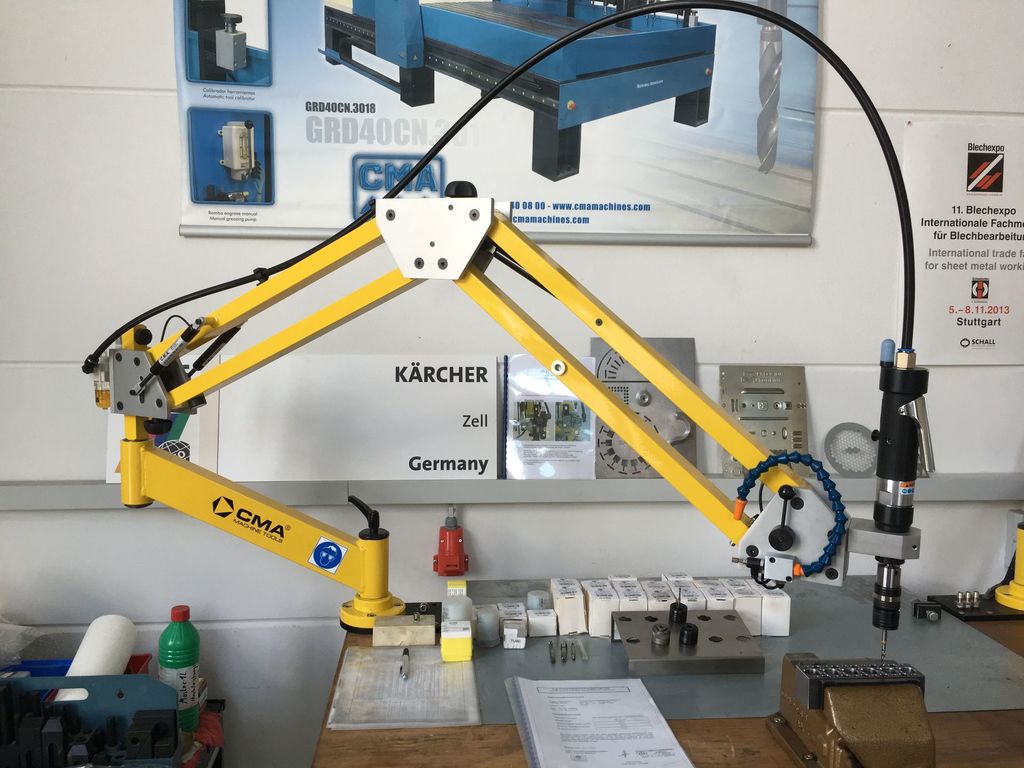

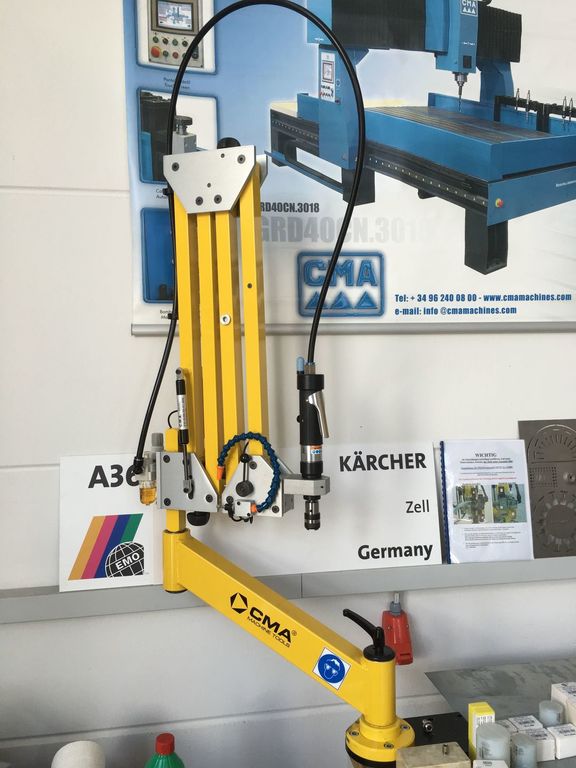

CMA LCN12 400 Tapping machine with parallel arm

pneumatic tapping machine with parallel arm M3 to M12, with minimum quantity lubrication system model LCN standard – Ball-bearing wear-parallel arm radius: 1800 mm – SMC (Japan) air supply unit with: – Pressure regulator – moisture separator – Engine lubrication – Mikrosprühsystem for tool lubrication – flange for mounting on the table – and quick change for, inter alia, Bilz thread holder CMA Tappers CMA is a manufacturer of threading machines with parallel arms. In addition to the simple nature thereby cut threads, the machines offer more possibilities and especially flexibility. The threading by hand is always very time consuming. With a CMA threading machine you shorten the cycle time for a thread of about 3-5 seconds and reach a much greater accuracy (guaranteed perpendicular thread). You save a lot of time by shorter conversion and the possibility of drilling and tapping simultaneously perform two jobs (while tapping the drill automatically drills). Another advantage is that the taps can be positioned quickly and easily through the borehole (flexible settings) and not the workpiece under the hob should be positioned (rigid setting, where it can therefore come to tap breakage to positioning errors and). When using a threaded […Technical data truncated]
