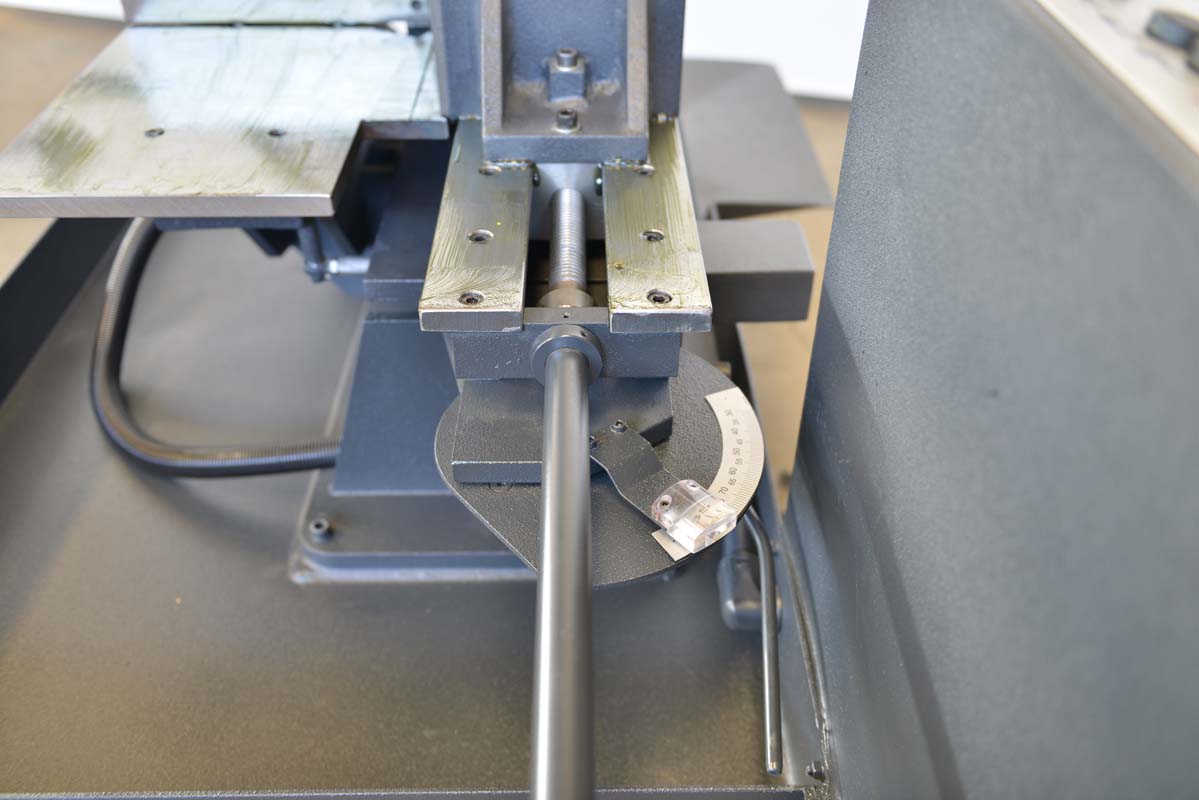

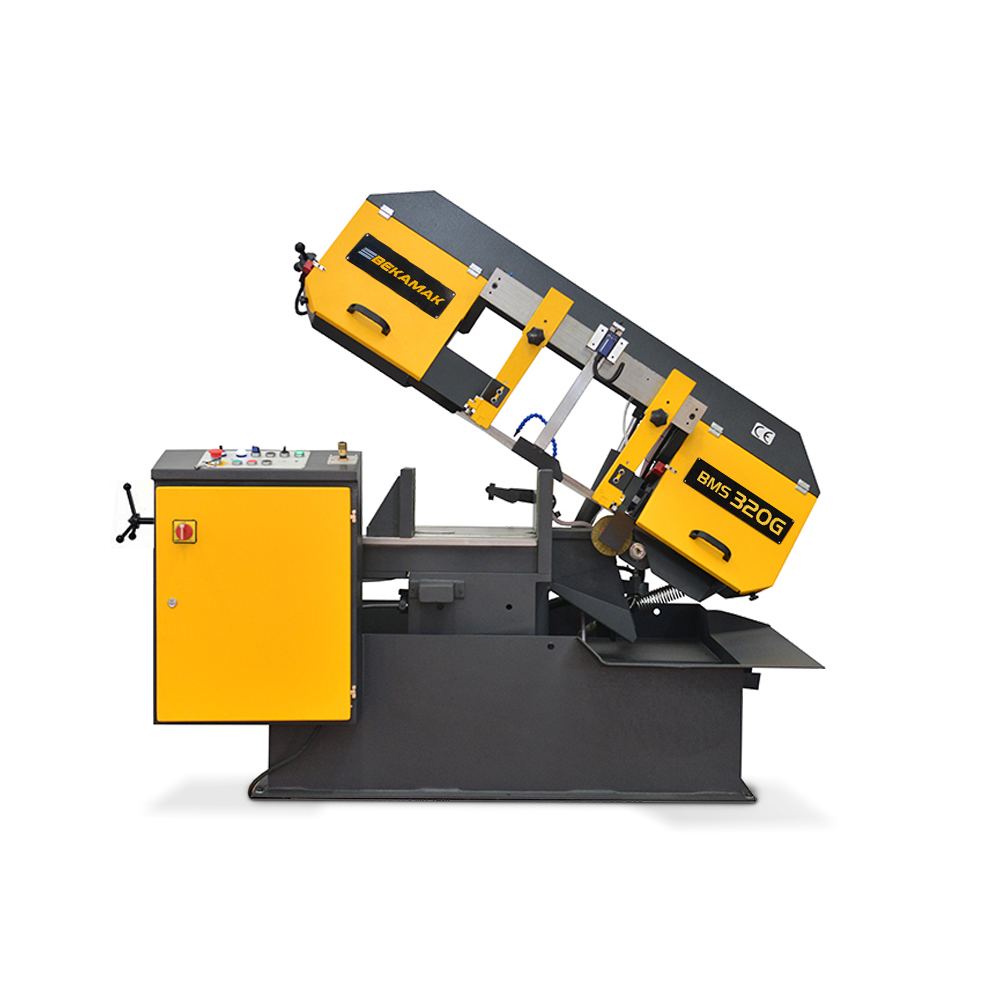

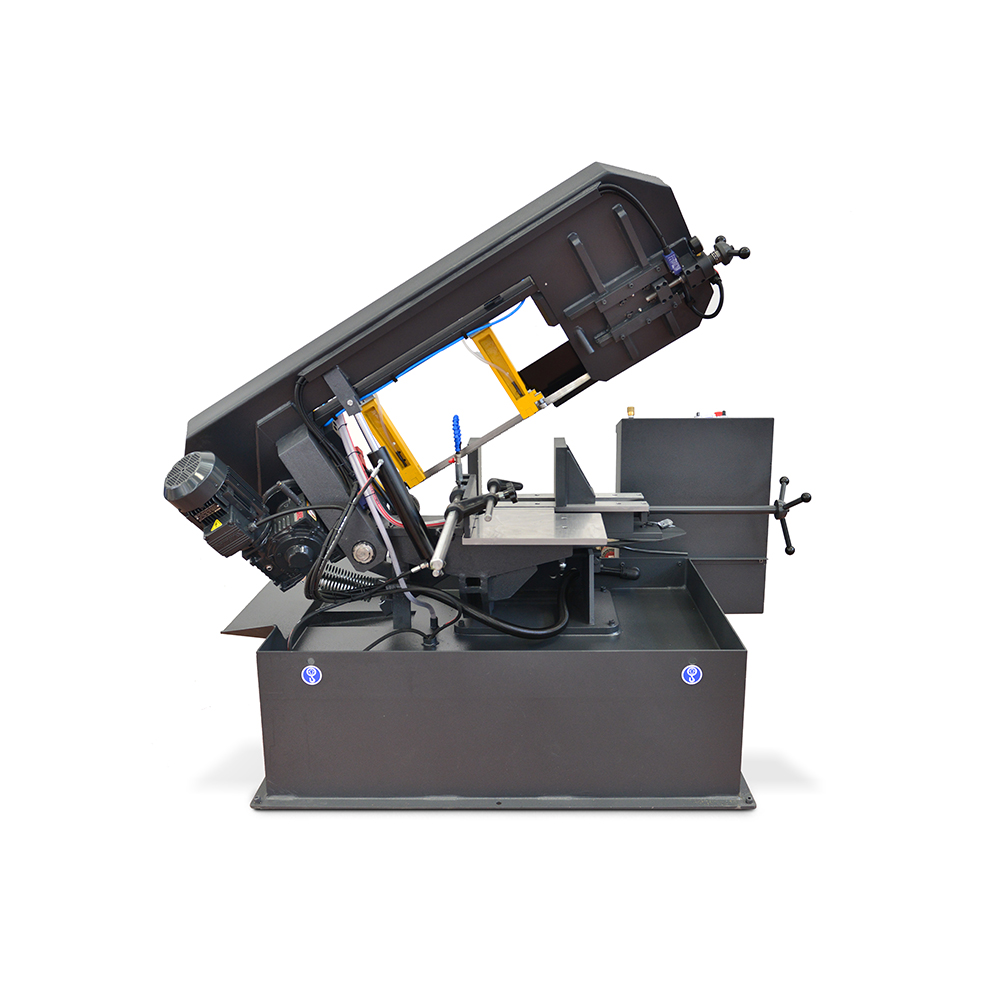

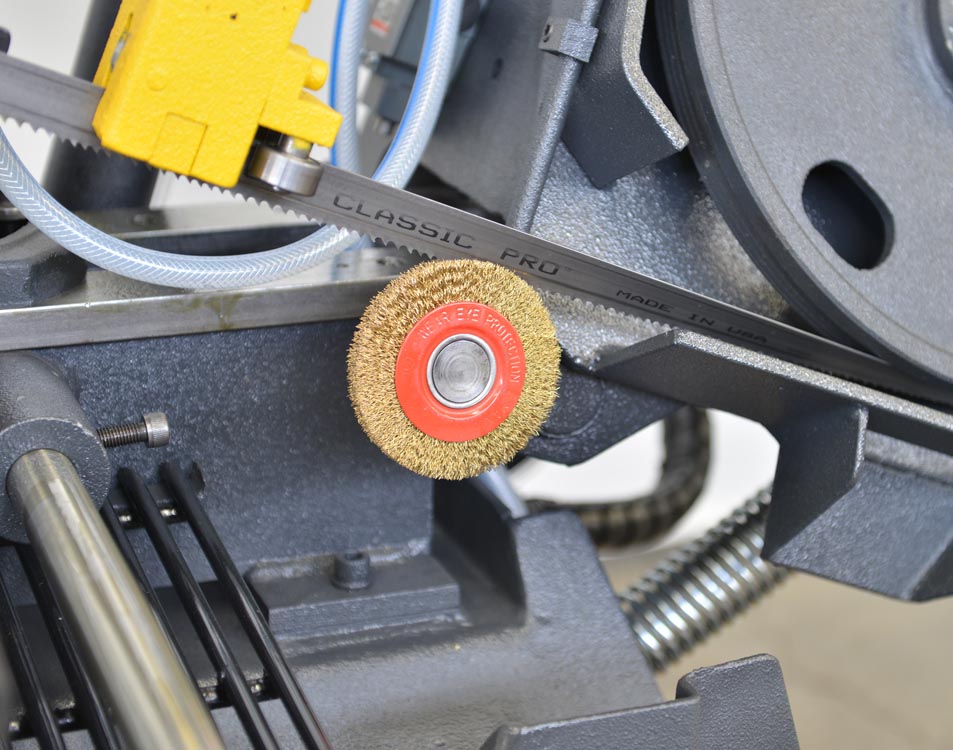

320G and 320GL are durable and stably laid out for universal seperation from full materials,pipes and profiles.A fast and precise mitre adjustment is characteristic within the range of 90° to 30°.The sawing property is situated in-line and becomes manuel strained in 90°. The machines are fitted with a removable coolant tank incorporating a submerged electric coolant pump which supplies coolant to both guide assemblies. These models can cope with most types of material.Blade guides with rollers and carbide pads provide precise support for the blade. Thermal overload and no-volt release are standart feature and the machines automatically switch off at the end of the cut. Bi-Metal sawblade and 1,2 meter infeed roller table are supplied as standart. ECT982
| PARAMETER | UNIT | UNIT |
|---|---|---|
| Round Cutting Capacity | mm | 320 |
| Flat Cutting Capacity | mm | 350 x 320 |
| Square Cutting Capacity | mm | 320 |
| +30° Round Cutting Capacity | mm | 160 |
| +30° Flat Cutting Capacity | mm | 150 x 150 |
| +30° Square Cutting Capacity | mm | 150 |
| +45° Round Cutting Capacity | mm | 260 |
| +45° Flat Cutting Capacity | mm | 250 x 180 |
| +45° Square Cutting Capacity | mm | 180 |
| +60° Round Cutting Capacity | mm | 300 |
| +60° Flat Cutting Capacity | mm | 300 x 200 |
| +60° Square Cutting Capacity | mm | 250 |
| +75° Round Cutting Capacity | mm | 320 |
| +75° Flat Cutting Capacity | mm | 350 x 200 |
| +75° Square Cutting Capacity | mm | 300 |
| Main Drive Motor | kW | 1,5 |
| Coolant Pump | kW | 0,12 |
| Cutting Speeds | m/min. | 20 - 100 |
| Band Dimensions | mm | 3660x27x0,9 |
| Working Height | mm | 740 |
| Weight | kg | 960 |
| Length | mm | 1900 |
| Width | mm | 1200 |
| Height | mm | 1350 |
