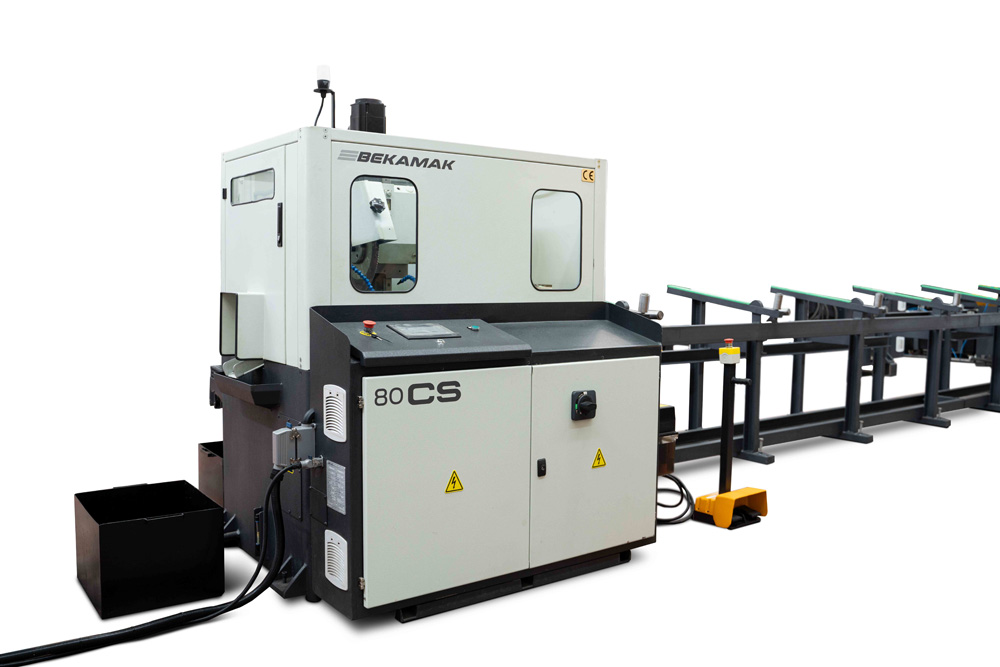

Bekamak BMDO-80CS Circular Saw Machine
| Manufacturer | Bekamak |
|---|---|
| Model | BMDO-80CS |
| Year of Manufacture | Not Specified |
| Condition | New / Unused |
| Hours of Operation | Not Specified |
| Serial Number | Available on Request |
|---|---|
| Location | Türkiye |
| Category | Metal processing machines |
| Reference ID | #WM-2614 |
| Listing Published | 22 January 2022 |
Vertical Slide for maximum cutting power and rigidity.
Standard with Speed Inverter for speeds of 20-100 m/min.
Electric Servo Feeding for +/- 0.05 ~ 0.1mm Cutting Length precision (per stroke)
Capacity up to 80mm in Tube and Solid Bars.
Superior Gear Box design for maximum machine life and performance.

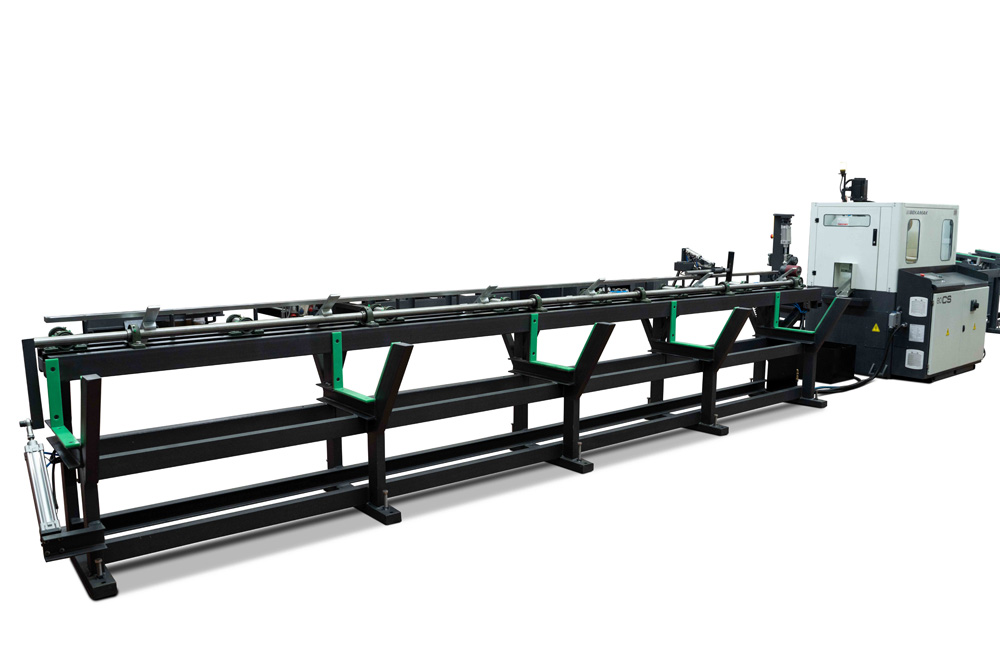

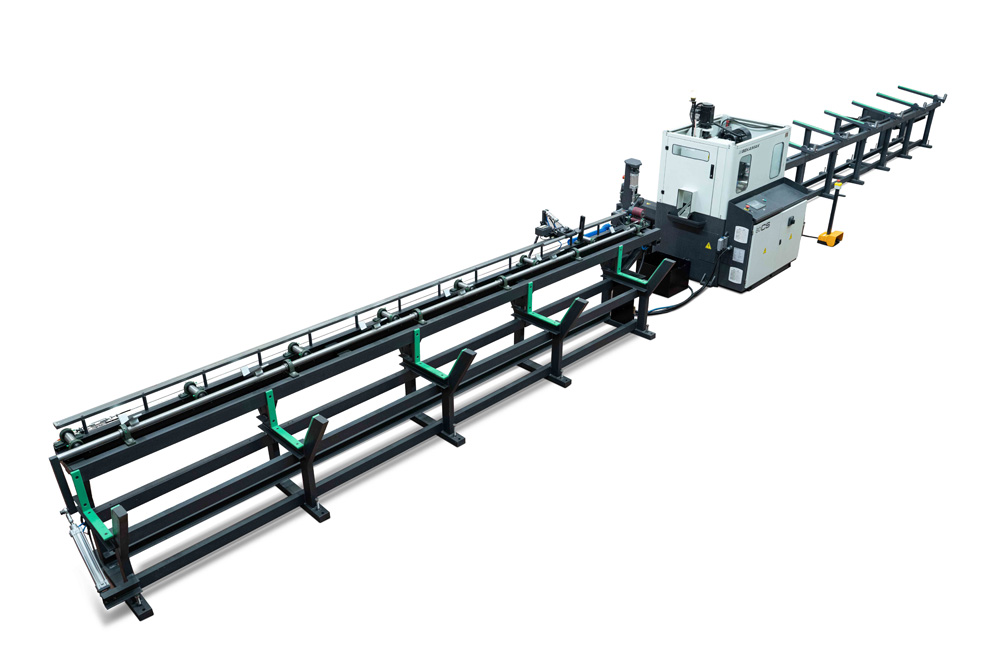

Flexible Gripper Feeding + Floating Carriage allow for maximum feeding precision even in material which is not perfectly straight.
Intuitive and User Friendly Interface with Touch Screen system..
Ability to program multiple cutting lengths per bar.
Safety Covers for maximum operator protection and comfort.

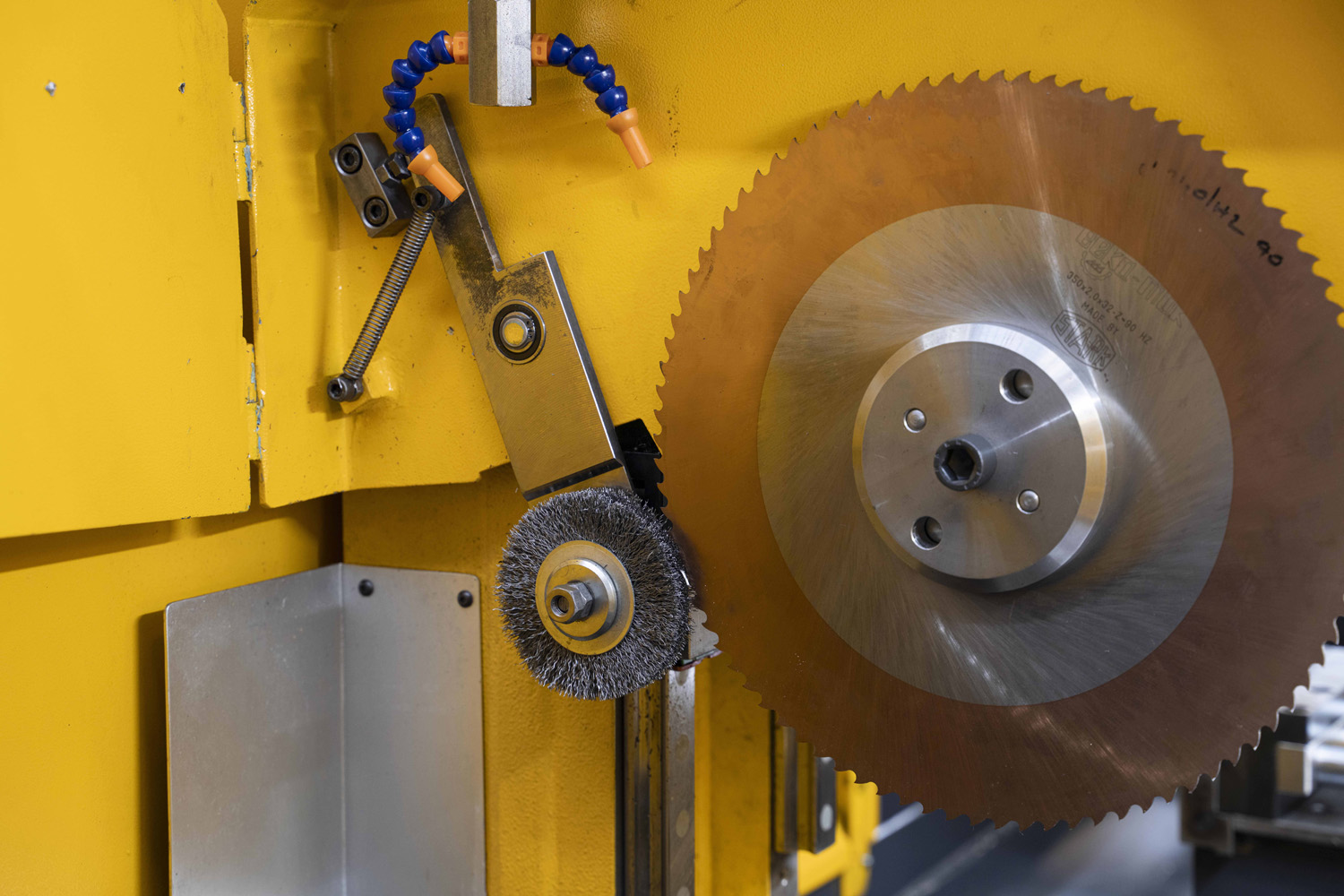

Head for ferrous material not with endless screw, but with cemented and ground helical gear for obtaining a high operating rate without any play or vibration of the saw-blade. Head with inverter allowing a continuous change of the cutting speed. ECT982
| PARAMETER | UNIT | UNIT |
|---|---|---|
| Round Cutting Capacity | mm | 20-80 |
| Clamp Max Opening | mm | 85 |
| Feed Lenght | mm | 500 |
| Main Motor | kW | 5,5 |
| Hydraulic Motor | kW | 1,5 |
| Coolant Motor | kW | 0,2 |
| Feeder Servo Motor | Kw | 1 |
| Main Servo Motor | kW | 2 |
| Chip Conveyor Motoru | kW | 0,25 |
| Cutting Speeds | m/min. | 22-130 |
| Circular Saw Blade | mm | 260 - 350 2.0t - 3.0t (max) |
| Working Height | mm | 900 |
| Weight | Kg | 1425 |
| Length | mm | 1600 |
| Width | mm | 1700 |
| Height | mm | 2100 |
