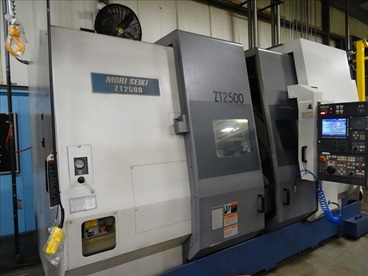

2001 MORI SEIKI ZT2500Y 4-AXIS TWIN SPINDLE TWIN TURRET CNC LATHE W/ LIVE MILLING AND BAR FEED

Max. Swing Over Bed: 370.84mm,Max. Distance Between Centers: 749.30mm,Max. Turning Diameter: 378.46mm,Max. Chucking Length: 347.98mm,Spindle Speeds: 40 - 4000 RPM,Spindle Motor (30 Min. / Continuous): 30 / 18.64 kw,Spindle Through Hole: 87.88mm,Subspindle Travel: 965.20mm,C-Axis Indexing: .001°,Rotary Tool Spindle Speed: 6,000 RPM,X-Axis Travel (Turret 1 / Turret 2): 279.40mm / 200.66mm,Y-Axis Travel (Turret 1 & Turret 2): +/- 71.12mm,Z-Axis Travel (Turret 1 & Turret 2): 960.12mm.

EQUIPPED WITH

Live Milling,SMW Spacesaver 2100 Bar Feed,Fanuc 18iTA/CRT CNC Control,(1) 16-Tool Upper Turret,(1) 16-Tool Lower Turret,(2) Kitagawa B-210 254.00mm 3-Jaw Chucks,(4) VDI Live Tool Holders,Chip Conveyor,Parts Conveyor,Right Spindle Parts Ejector

Price: EUR 30,000.00
